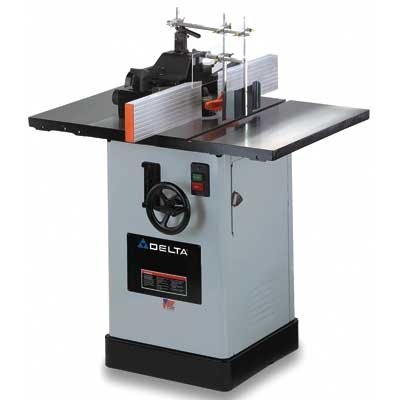

Delta 43-460 1-1/4-Inch Solid Spindle 5 Horsepower Shaper with Micro Adjust Fence, 200/230/460-Volt 3 Phase

This high-speed production shaper has the ability to use seven different spindle sizes and a router spindle to handle a wide variety of tasks. Included with the unit is a 1-1/4-inch solid spindle, interchangeable accessory spindles are available. A five-horsepower, totally enclosed fan-cooled motor provides the muscle to handle demanding tasks such as panel raising. The motor is three phase and can be wired for 200, 230, or 460 volts to accomodate a variety of users. The drive mechanism is a single, self-contained unit consisting of the spindle, motor, housing, and raising and lowering mechanism. This assembly is mounted directly to the underside of the 30-by-27-inch cast iron table for perfect 90-degree alignment. A 10-inch table extension is included for extra surface area and support. Increasing the accuracy of cutting is the micro adjustable fence. Both fence halves can be adjusted independently for ultimate precision and safety in all cutting operations. The fence has a coarse adjustment for quick positioning and a micro adjustment for precision set up. Built into the fence is a multi-featured safety guard and material hold down mechanism. This mechanism tilts up out of the way for cutter changes. The locking spindle-adjusting wheel and the on/off switch are conveniently located together and within easy reach from normal operating position. A magnetic starter switch controls the motor and will break contact in the event of power loss so the operator must re-start the machine when the power is restored. This prevents automatic re-starts that could occur if the switch maintained contact, a potentially unsafe situation. Two Year Limited Warranty on machines, parts, and accessories. Includes shaper, 10-inch cast iron extension wing, deluxe fence and guard assembly, 3/4-inch spindle, and instruction manual.
